Small Hydraulic System Pump Station Small Hydraulic Power 40L Tank Capacity 220V 750W Three-Phase

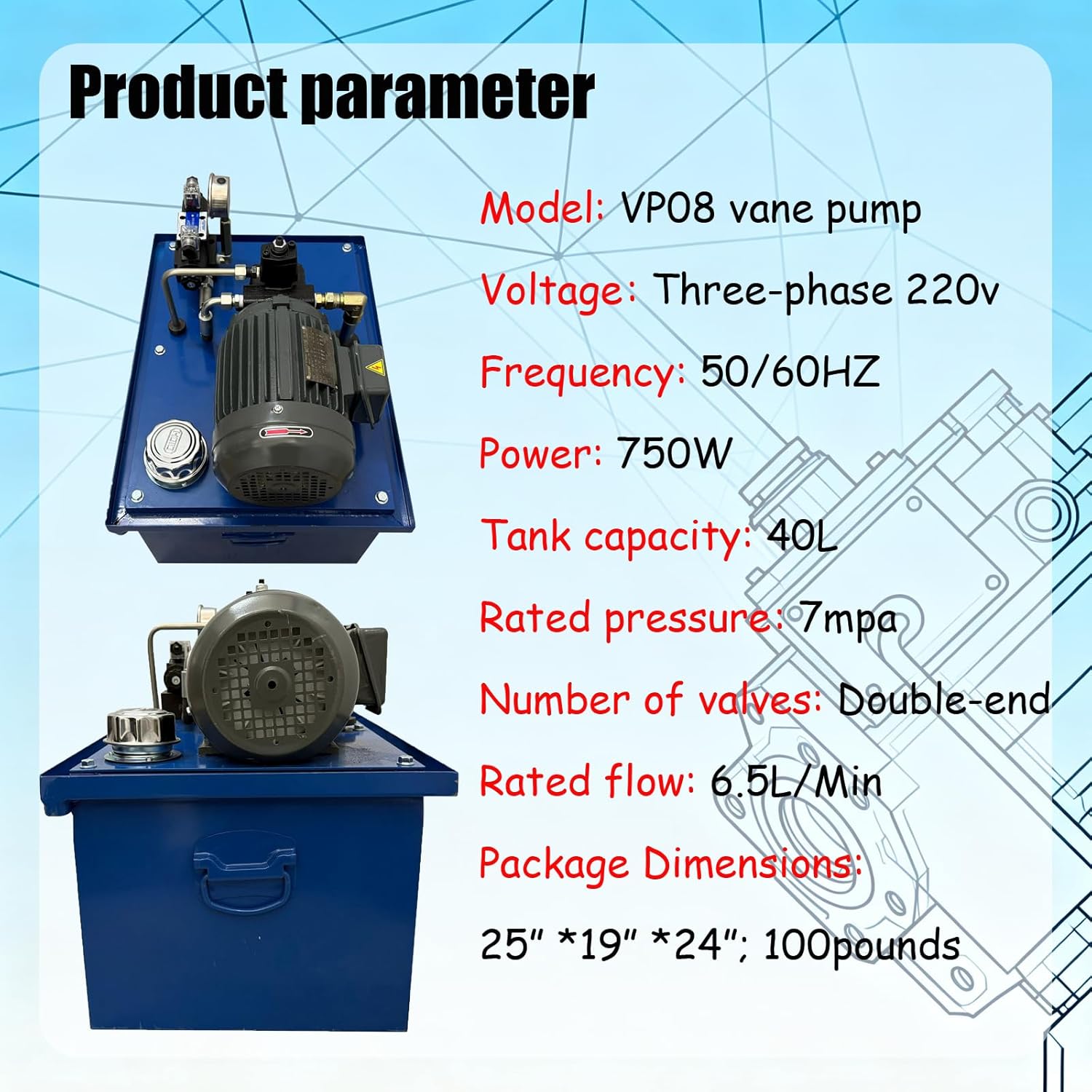

Specification Model: VP08 vane pump Voltage: Three-phase 220v Frequency: 50/60HZ Power: 750W Tank capacity: 40L Rated pressure: 7mpa Rated flow: 6.5L/Min Package Dimensions 25” *19” *24”; 100pounds

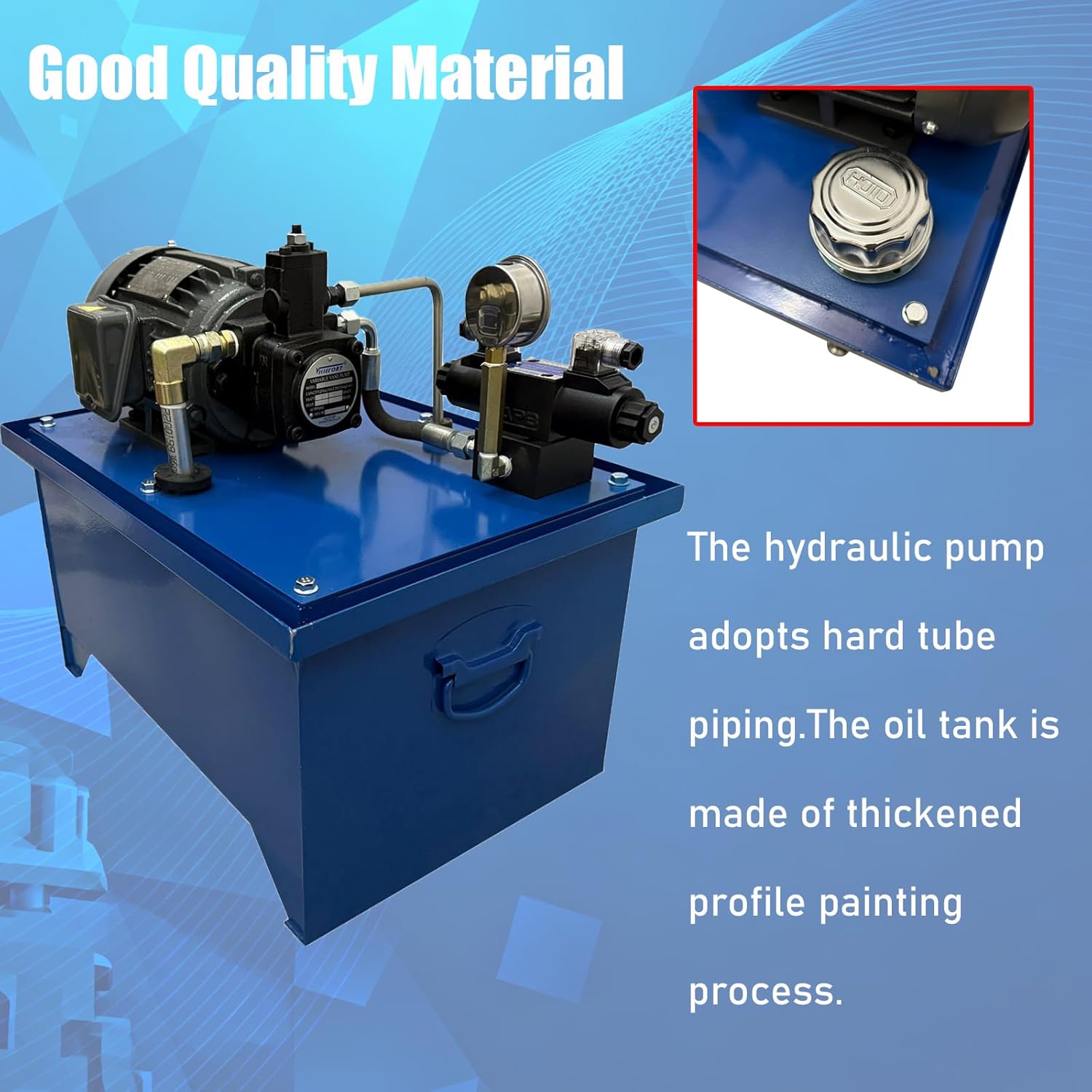

• [Good Quality Material] The hydraulic pump adopts hard tube piping for extended service life and efficient heat dissipation. The oil tank is made of thickened profile painting process, which is anti-rust and not easy to lose the paint.

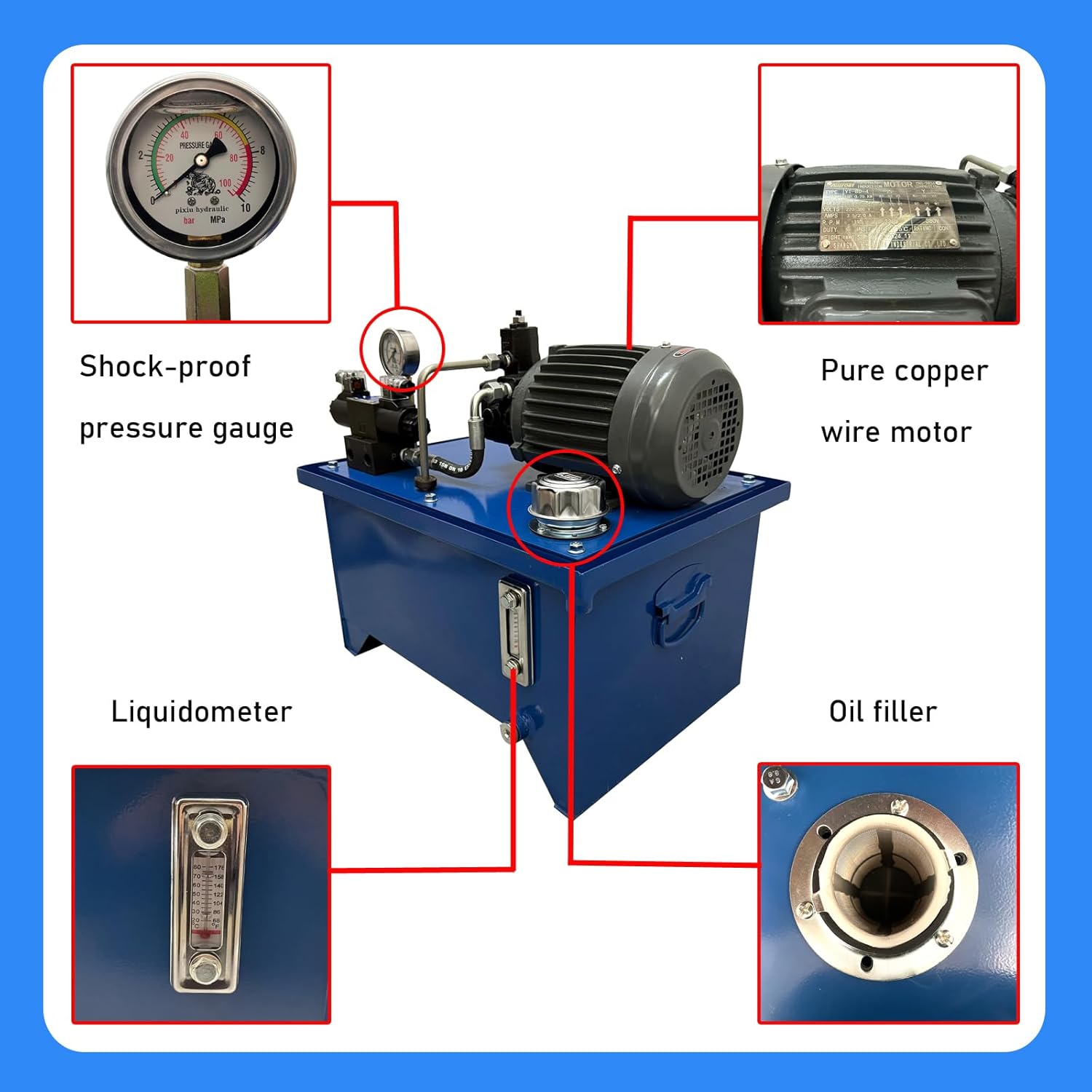

• [40L Tank Capacity] The pump comes with a 40-liter large oil tank for ample storage. Its enlarged refueling port simplifies refueling, while the liquid level gauge enables easy oil level monitoring. It features low pressure pulsation and automatic flow adjustment.
• [Variable vane pump] As a variable vane pump, it features ultra-sensitive response—achieving pressure adjustment in only 0.2-0.3 seconds for efficient operation.
• [Pure Copper Motor Configuration] The station pump is fitted with a 750W pure copper motor, featuring low noise for long-term stable operation.
• [Application Scope] Compact in size, this machine is ideal for space-constrained environments and small hydraulic-equipped machinery/equipment. It supports configuration of various hydraulic components and valves as required.
