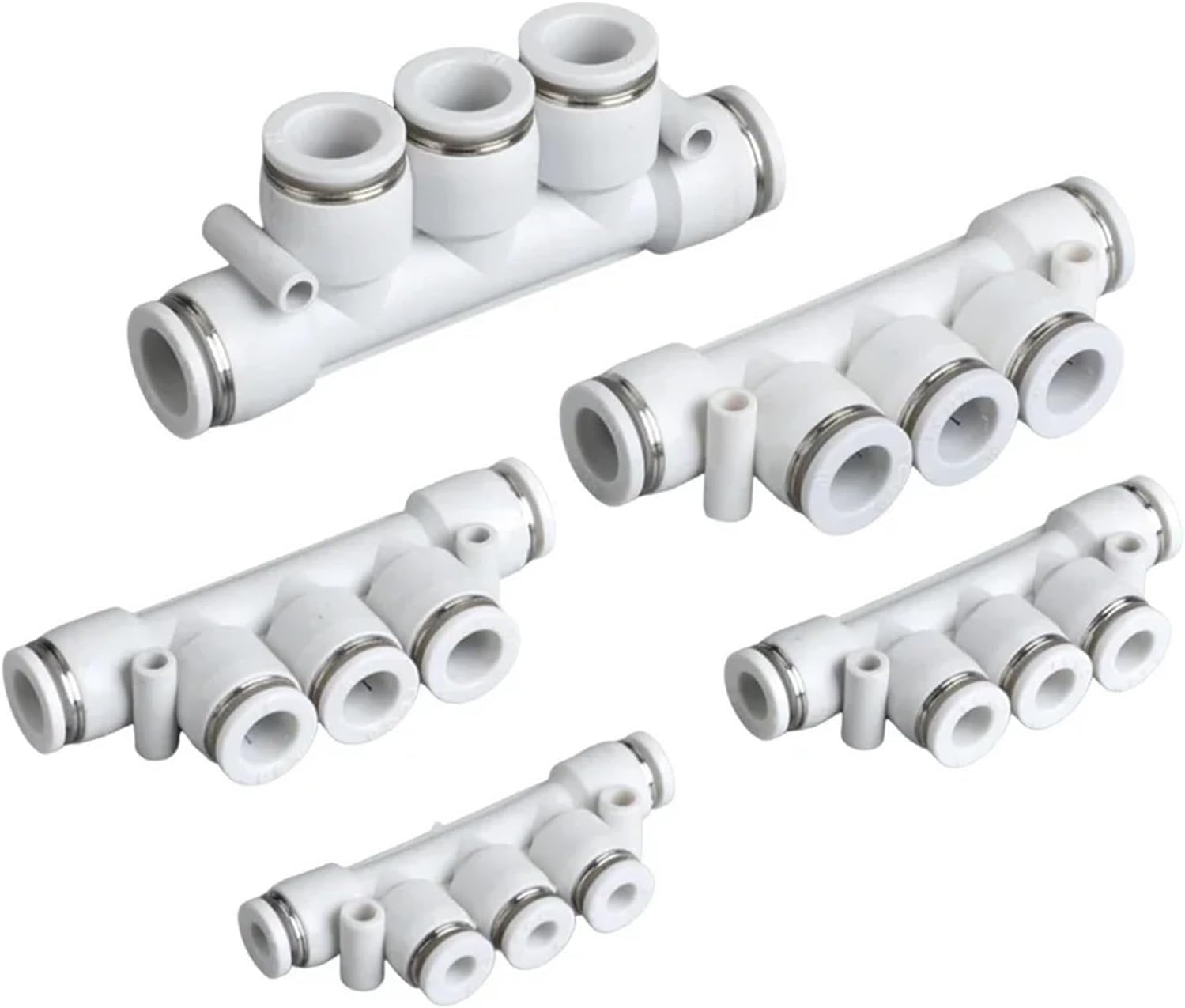

5pcs PKG PK Manifold Connection Quick Air Hose Fitting 12 10 8 6 4 Pipe Tube Pneumatic Push-Fit Connector 4MM 6MM 8MM 10MM 12MM(PK4-4)

Fittings5pcs PKG PK Manifold Connection Quick Air Hose Fitting 12 10 8 6 4 Pipe Tube Pneumatic Push-Fit Connector 4MM 6MM 8MM 10MM 12MMPKG Specification:Item No.: PKG Connection Way: One-Touch Quick ConnectionType: Hose to HoseDesign: Reducing 3-Way ManifoldMaterial: Nitrile Rubber, Plastic, MetalFluid Type: Clean Air, Vacuum, No Toxic GasApplicable Tube: SolfNylon, PolyurethaneNormal Operating Pressure: 0~10kgf/cm² (0~1.0MPa / 0~1.0bar)Max.Operating Pressure: 15.0 bar(1.5MPa)Negative Pressure: -750mmhg (10Torr)Ambient And Fluid Temperature: 0~60 (140)Hose Size Options (mm) : 6-4, 8-4, 8-6, 10-6, 10-8, 12-8, 12-10, 14-10, 14-12, 16-12, 16-14PK Specification: Item No.: PKConnection Way: One-Touch Quick ConnectionType: Hose to HoseDesign: 3-Way ManifoldMaterial: Nitrile Rubber, Plastic, MetalFluid Type: Clean Air, Vacuum, No Toxic GasApplicable Tube: SolfNylon, PolyurethaneNormal Operating Pressure: 0~10kgf/cm² (0~1.0MPa / 0~1.0bar)Max.Operating Pressure: 15.0 bar (1.5MPa)Negative Pressure: -750mmhg (10Torr)Ambient And Fluid Temperature: 0~60 (140)Hose Size Options (mm) : 4-4, 6-6, 8-8, 10-10, 12-12, 14-14, 16-16Installation Instructions:InstallationGrasp the tubing and slowly push it into the fitting until it comes to stop.The tubing will be locked by the spring gasket.RemovePush the release button to open the spring gasket so that the tubing can be released.Cautions:1. Cleaning: Clean the piping before connection to remove debris.2. Tubing Cut: Ensure a perpendicular cut without scratches on the tubing's outer diameter.3. Pipe Length: Avoid excessive bending; select a proper pipe length.4. Connection:After connecting, pull the tubing gently to check its seal.5. Release:Push evenly on the release button flange for proper tubing withdrawal.6. Removal: Avoid rotating the tubing full

• Fittings
• 5pcs PKG PK Manifold Connection Quick Air Hose Fitting 12 10 8 6 4 Pipe Tube Pneumatic Push-Fit Connector 4MM 6MM 8MM 10MM 12MM
